ElMod - M16 Halftrack Control & Sound Module V2

Out of stock
5713
Brand/Manufacturer: ElMod
$24000

  Special Order - Please allow 4-5 weeks for delivery

I understand that this product is special order only, and that it may ship direct from the manufacturer to save time. I agree with the shipping time that is listed as part of this special order.
Out of stock
Payment Options
Credit Card (No Fees)
PayPal (No Fees)
Direct Deposit (Australian Customers Only)

Shipping Info
Australian Customers
Standard Flate Rate $10 AUD
Express Post - from $12.15 AUD
International Customers
Standard Airmail (Includes Tracking)
Express EMS Parcel (Includes Tracking)


 This Item Available By Special Order Only - Please allow 4-5 weeks for delivery

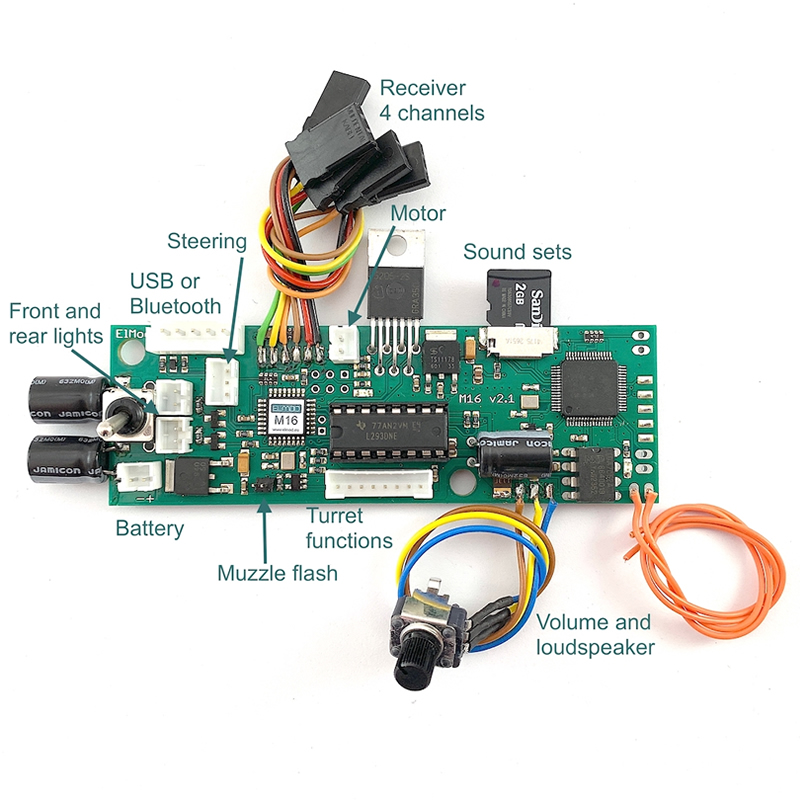

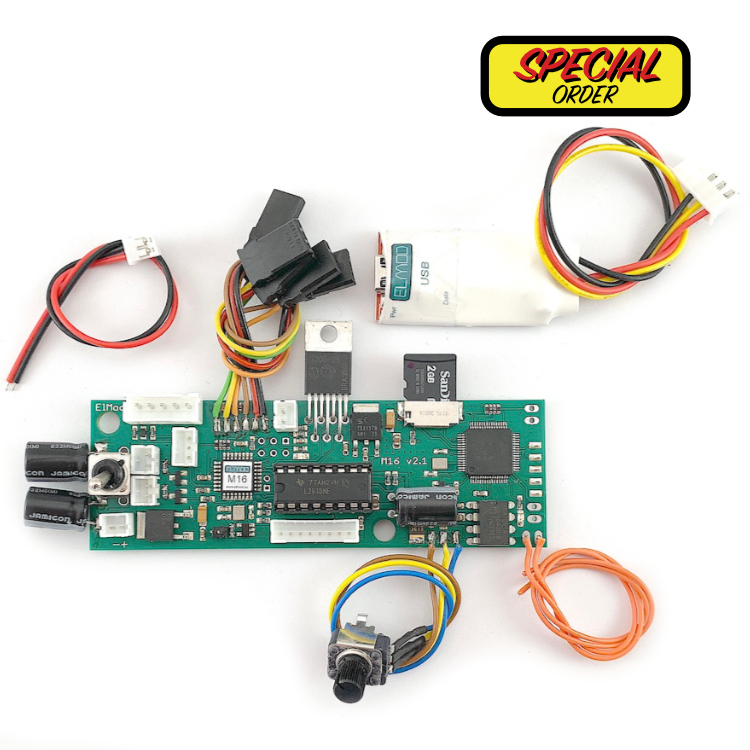

ElMod M16 is a high integrated all-in-one plug&play electronic solution for the NEW Torro(R) M16 AA Halftrack (delivered with a digital radio equipment). It controls all functions of the vehicle and includes a polyphonic sound unit on board.

Requirements

  • A Torro(R) 2.4ghz M16 AA halftrack. WARNING! This product is NOT compatible with the old analog/FM Torro vehicle!
  • A four channel RC radio and receiver.
  • An appropriate high current-compliant battery (6- to 9-cells NiCd, NiMh or a 2S/3S LiPo/LiIon).

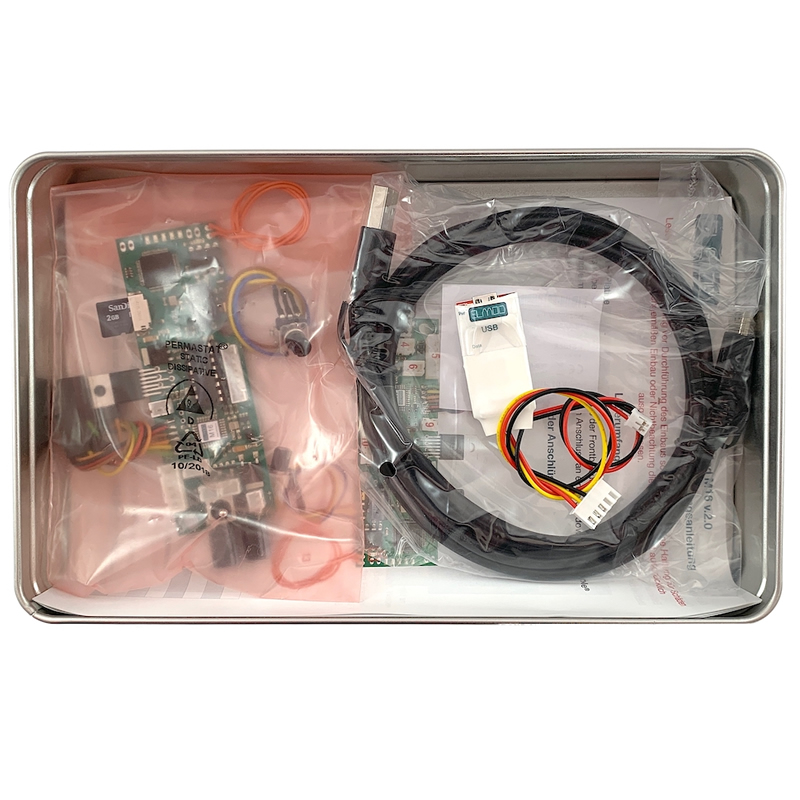

Scope of delivery

  • Electronic board with all necessary cables.
  • Cable for optional attachment to the front light.
  • ElMod USB dongle: a connection cable for a Windows® or Apple® computer for customization of all parameters of the vehicle.

Details

Drive

  • A strong and overload protected main motor driver (up to 5 Amps).
  • ElMod Physics Engine 2:
    • A driving experience of commanding a heavy vehicle by simulation of mass inert.
    • The maximum speed according to in scale speed of the 1:1 vehicle.
    • Two phase acceleration simulates the function of a gearbox: the drag decreases on higher speed.
    • Short rest after stopping simulates gear switching.
    • Three brake modes: engine brake with a long runout, full proportional brake, emergency brake.

Functions

  • Full proportional control of turret rotation.
  • Full proportional lifting and lowering of the AA guns.
  • Muzzle flash.
  • Switchable lights (rear light and optional front light).
  • Rear light also integrates brake light.
  • Diverse setting options via the free ElMod App.

Receiver

  • Connection to standard RC gear (requires four channels). No separate motor controller or mixers required.

Sound

  • Integrated polyphonic sound unit:
    • Five sound channels for the simultaneous output of sounds.
    • Open file format: wav, 8 bit, 22kHz sampling rate, mono, PCM.
    • Three additional samples which can be defined by the user.
    • Speed dependent engine sound.
    • Up to seven samples for the turret rotation depending on the turret speed.
    • Alternative sounds for turret rotation when motor is switched off (operation by hand / emergency operation).
    • Distinction between cold and warm start.
    • Random selection of up to ten clips for switching engine on/off.
    • Shot sound.
    • Direct connection to an 8 Ohm speaker.

General

  • Battery protection for NiMh/NiCd/LiPo and LiIon batteries with voltage monitoring and undervoltage protection switch-off.
  • Configurable drive parameters via USB with the included ElMod USB dongle.
  • Simple installation: all connectors of the Torro(R) vehicle fits to the ThinkTank M16 unit. Only two wires to the speaker has to be soldered.
  • Battery protection for NiMh/NiCd/LiPo and LiIon batteries with voltage monitoring and protection switch-off.
  • configurable drive parameters via PC and USB with the included ElMod USB dongle
  • Simple installation: all connectors of the Torro® vehicle fits to the ElMod M16 unit. Only two wires to the speaker has to be soldered.

Manual can be viewed online here.
