The Fusion Smoker Board provides the capability of using a smoker generator with separate terminals for heater and fan with an ElMod Fusion PRO or ElMod Fusion ECO central unit.
As supplied, the board will drive a smoke generator which consumes a maximum current of 0,7 Ampere (heater and fan together). With a simple wiring alternative a smoke generator with current consumption of 2,5 Ampere for the heater and 2,5 Ampere for the fan may be used.
A vehicle equipped with a supported type of ElMod central unit (ElMod Fusion ECO or ElMod Fusion PRO) and a suitable smoke generator with separate terminals for heater and fan (or pump).

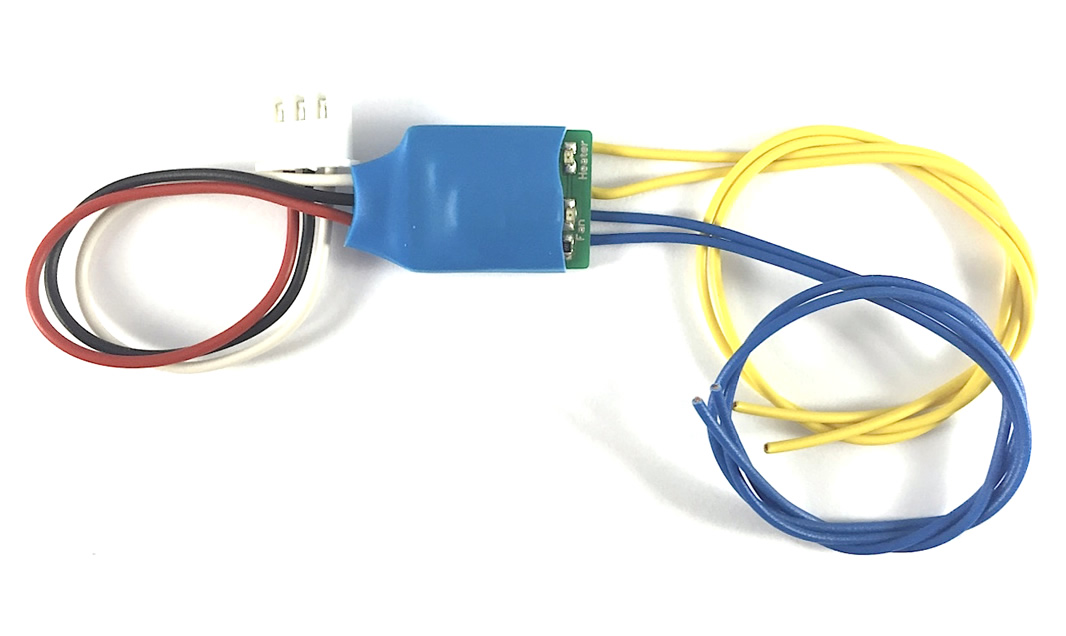

Ready to use board
Section of shrink tube
15 cm of insulated wire for high power smoke generators
Please note: Smoke generators (ie: Heng Long and Taigen) which provides a single terminal for the heater and fan may be attached to the ElMod central unit directly. You do not need to purchase this board to connect and use them.
