Clark Model TK22A - Tank Controller (M4 Sherman Sounds)

Brand/Manufacturer:Clark Model 1:16, M4 Sherman

NEW 'A' Version

$114.00
Short description:
A great alternative to the standard Heng Long and Taigen electronics package.
Weight: 0.05 Kg per item
TK22A-M4
1 item(s)
+

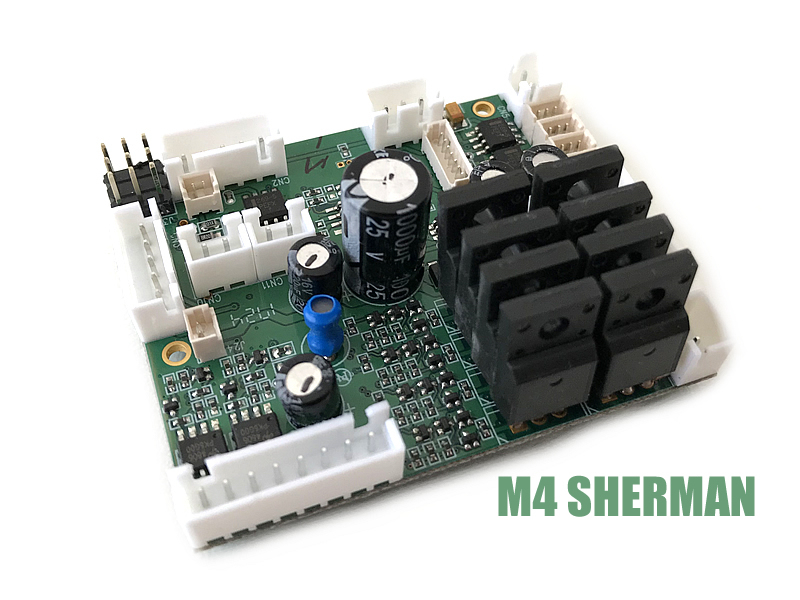

TK22A series controller is the successor of successful TK22 series, uses 4-CH conventional PWM or 10-CH S.BUS RC system to control R/C tank's forward/backward movement, sharp turning, pivoting, turret rotation and gun barrel evaluation at variable speed.

OVERVIEW

  • Ultrasonic ESC*3 for two track motor and turret rotation
  • Ultra Low turn-on resistance FET for track motor ESC
  • 22KHz, 8-bit high quality sound with digital sound mixer
  • Maximum of 5 channel of sound track, main gun, machine gun, turret rotate, gun barrel elevation and engine sound can be generated at the same time
  • 3W sound output power
  • 0.8A BEC
  • EPM*2 for gun elevation(EPM1) and turret rotation/gun traverses(EPM2)
  • Wide operating voltage rage, from 7.2 to 12V, support 3S Li-Po battery
  • Support air-soft gun with sound synchronization
  • Support TAMIYA and HL IR battle unit and format
  • Support RealRecoil servo port
  • Safety shutoff prevents unwanted movement while signal lost
  • Auto R/C signal detection
  • Miniature design(60mm X 50mm X 20mm) for 1/25~1/16 R/C Tank

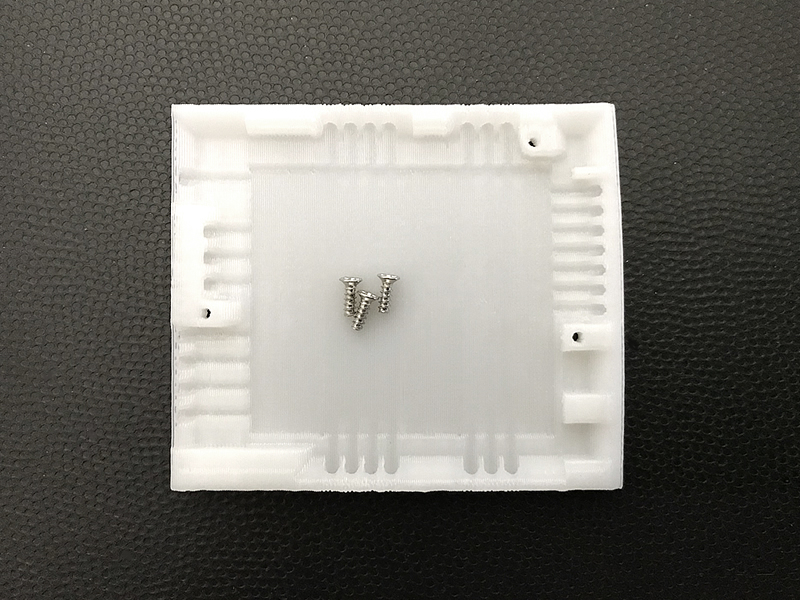

  • 3D Printed mounting plate now included.

Sounds Include:
Engine: Continental R975-C4
Main Armament: 76mm
Secondary Armament: .30 Cal


IMPORTANT: PLEASE READ BEFORE PURCHASE

This product is not for beginners -THIS IS NOT A 100% PLUG AND PLAY BOARD
For complete installation and configuration instructions, please visit the Official Clark Model TK22 Information Page

 Visit the TK Series Information Section

Brand/Manufacturer:
Clark Model
Scale:
  • 1:16
Tank:
  • M4 Sherman
