The Fusion ECO provides the ultimate in control and customisation over all functions of your tank, half-track or truck with one or two driving motors. It also supports steering by chains and/or one steering axle (ie. Trucks). It is designed for tanks and vehicles with basic functions.
The Revision F is a face lifted version of our successful Fusion series. It has been extended with the ability to handle a smoker generator with separated heater and fan.
A model and a common, hobby grade RC-radio and receiver with two to six channels.
Alternatively the vehicle may be controlled by a computer or tablet (Android App will be released soon) via Bluetooth technology. For this option a separately available Bluetooth dongle is required.
- Configure every aspect of your tank with over 100 parameters on your PC, Notebook, 2in1 or MAC.
- USB dongle and cable is provided and software is a FREE download.
- Change parameters and control of all vehicle functions, and view status information.
- Individual vehicle profiles may be created and saved.
- Operation with NiCd-, NiMh- or LiPo-Batteries (2S only) with a voltage between 7.2 V and 10V.
- Under voltage shut down for protection against deep discharge.
- Overvoltage shut-down.
- integrated 10A mini fuse for the protection of the drive system.
- integrated, resettable SMD-fuse for the protection of the turret functions.
- compact size: 92mm x 55mm(3,6"x2,2").
What you get:
- ready to use electronic board
- power supply cables
- two connecting plugs for drive motors
- all necessary cables for the RC receiver
- rotary knob for volume control and connecting cable for loudspeaker
- USB dongle and an USB cable for connecting with a Windows® or Apple® computer for configuration and vehicle control using the free for use ElMod App
Recommended ElMod Accessories
- Bluetooth-dongle for wireless configuration and vehicle control (via ElMod App).
- IR battle extension (optionally for connecting with the Tamiya® Battle Unit, HengLong® Battle Option or the ElMod® Battle Set)
- connecting adapter for Tamiya® tank vehicles
- two 10A strong chain motor drivers (up to 30 Amps peak each motor), short circuit and overload protected.
- optional connection of up to two external drivers for alternative motor types (for example brushless motors).
- support for superposition gearbox
- physics engine 2.0: a driving experience of commanding a heavy vehicle by simulation of mass inert.
- all parameters of the physics engine are adjustable
- configurable steering with chains (may also be deactivated).
- configurable spin turn (may also be deactivated).
- steering of individually configurable axle by a servo with optional speed dependent steering lock angle.
Turret and weapon functions
- HengLong® compatible turret connector.
- optionally available adapter for a Tamiya® turret group.
- full proportional turret rotation with a motor (max. 2 A).
- full proportional elevation of the main gun with a motor (max. 2 A).
- control of a shot/recoil motor (max. 2 A).
- support for Tamiya® barrel recoil mechanics with independently configurable retraction and extraction speed.
- support for HengLong® and Taigen® recoil mechanics with utilization of the barrel end position switch for shot sound synchronization.
- support for Taigen® servo PCB.
- simulation of the barrel recoil by a servo with independently configurable.
- retraction and extraction speed and configurable steering lock angle.
- connection for Taigen® Xenon flash and HengLong® LED muzzle flash.
- MG muzzle flash may be connected directly by LED with configurable rate of fire.
- full proportional traversion of the main gun by a servo.
- full proportional elevation of the main gun by a servo.
- optional accentuation of the gun recoil by adjustable drive jolt
Lighting and miscellaneous functions
- one to two LEDs may be connected to all light channels.
- no further wiring or additional resistors are necessary.
- all light channels are short circuit protected. The LEDs can't be damaged by false polarity.
- included connector contacts and housings are sufficient for all light sources.
- main light may be dimmed and switched on and off by the radio.
- support for a smoke unit with smoke emission depending on engine load and motor sound.
- two type of smokers are supported: ones that provides a single connector for the heater and the fan or ones that provides separated connectors for the heater and the fan
- support of all ElMod sample sets and the ElMod NextGen Sound Technology for particularly prototypical sound playing.
- integrated sound unit plays several different sounds simultaneously.
- Sound types:
- various sound events: several motor start sounds with distinction between cold start and warm start, several engine off sounds. Engine sounds for the movement with simulated gear change, distinguishing between acceleration, cruising and braking. No audible steps between the engine sounds.
- optional collateral driving noises such as chassis squeal and optional surrounding noises.
- turret rotation sounds with optional distinction of operation with or without main engine running.
- sound for elevation of the main gun.
- shooting sound for MG.
- fire of the main gun (single shot or full-automatic fire).
- variable sounds for the projectile's impact with simulation of the impact in different distances.
- up to eight sounds that can be freely triggered by the user, like a horn.
- plain text announcement if battery voltage is too high/low.
- sounds for the IR battle mode.
- separate volume control of every sound type (for example the engine noise) and extensive configuration of the sound parameters.
- adjustment of the entire volume by the provided rotary knob.
- all sample sets are provided on a microSD card. They can be activated by the free to use ElMod App without restarting the Fusion board.
- integrated digital audio amplifier for the connection of a 8 Ohm loudspeaker.
- connection of up a servo with the operation modes barrel recoil and steering.
- max. 0,8 A current consumption for the servo.
- control with a common RC gear (radio and receiver, 40 MHz or 2.4 GHz) with at least two channels (acceleration and steering). Five channels are necessary for the control of all options.
- connection of up to six channels. One channel is reserved for up to two user defined functions.
- the receiver does not need an additional battery. 5V BEC are supplied.
IR battle functions
- connection with an optionally available adapter to Tamiya® Battle Unit, HengLong®/Taigen® battle option or ElMod® Battle Set.
- simple configuration with just one push button.
- selectable vehicle type: light, medium, heavy.
Which ElMod FUSION board do i need?
The differences between ECO and PRO. All other features are identical in both variants.

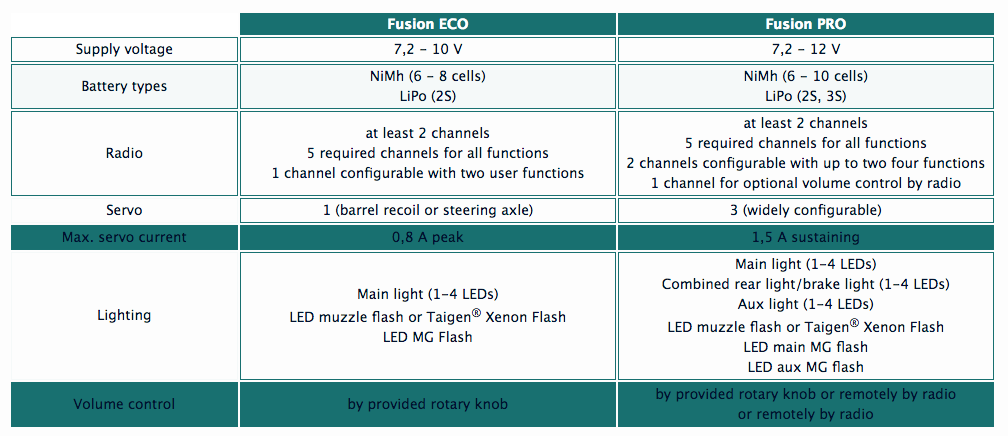

|Fusion ECO||Fusion PRO|
|Supply voltage||7,2 – 10 V||7,2 – 12 V|
|Battery types||NiMh (6 – 8 cells)|
|NiMh (6 – 10 cells)|
LiPo (2S, 3S)
|Radio||at least 2 channels|
5 required channels for all functions
1 channel configurable with up to four user functions
|at least 2 channels|
5 required channels for all functions
2 channels configurable with up to eight user functions
1 channel for optional volume control by radio
|Servo||1 (barrel recoil or steering axle)||3 (widely configurable)|
|Max. servo current||0,8 A peak||1,5 A sustaining|
|Lighting||Main light (1 or 2 LEDs)|
LED muzzle flash or Taigen® Xenon Flash
LED MG Flash
|Main light (1 or 2 LEDs)|
Combined rear light/brake light (1 or 2 LEDs)
Aux light (1 or 2 LEDs)
LED muzzle flash or Taigen® Xenon Flash
LED main MG flash
LED aux MG flash
|Volume control||by provided rotary knob||by provided rotary knob|
or remotely by radio
Version: Revision F
Online Manual can be downloaded here
Manual is also supplied with product.
